ASI 0030 Commercial Toilet Paper Dispenser, Surface-Mounted, Stainless Steel W/ Satin Finish

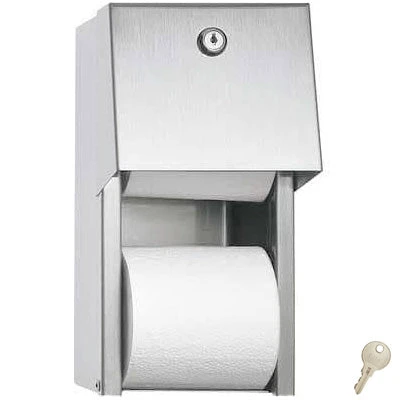

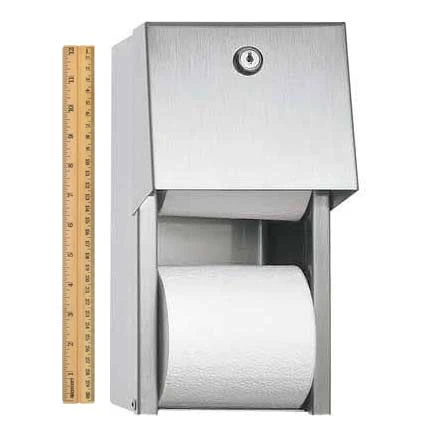

The ASI 0030 Surface Mounted Dual Roll Toilet Tissue Dispenser allows you to keep two rolls of toilet tissue in each of the compartments or stalls in your commercial washroom. The design of the unit keeps one roll exposed for dispensing and the other roll hidden behind a type-304, 18-gauge stainless steel door. To protect the roll that is not in use, the door is equipped with a pin tumbler lock. This lock also prevents the chrome-plated ABS plastic rollers from being removed. Once the bottom roll becomes entirely depleted, the top roll automatically drops into place. The holder accepts toilet tissue rolls with standard rolls that are up to 5-1/4 inches in diameter. All of the exposed surfaces on the unit feature a number 4 satin finish, which resists fingerprinting, but still has an attractive sheen. The unit mounts securely to any hard surface and measures 6 inches in width by 12 inches in height by 6-1/2 inches in depth.

From the Manufacturer

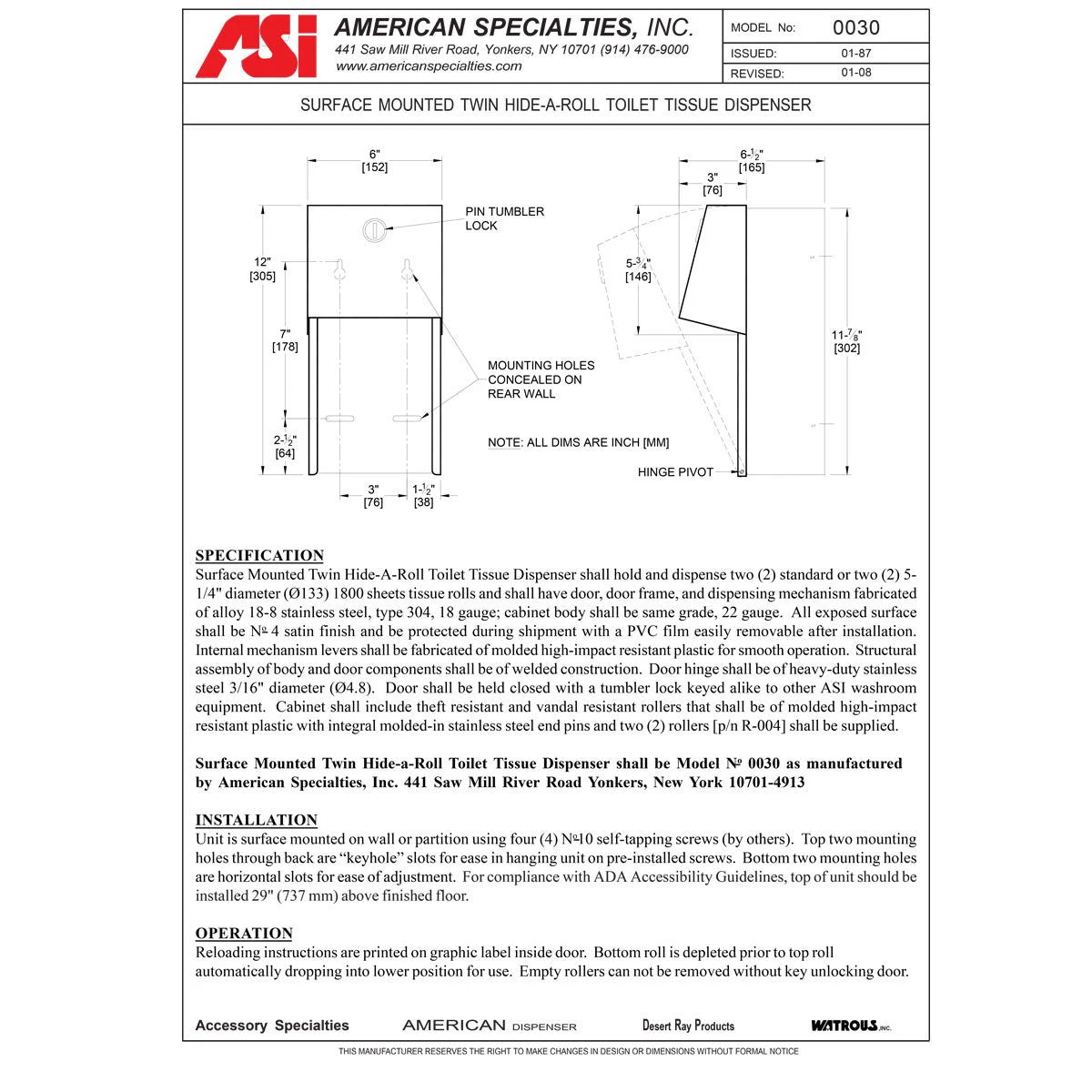

SPECIFICATION Surface Mounted Twin Hide-A-Roll Toilet Tissue Dispenser shall hold and dispense two (2) standard or two (2) 5- 1/4″ diameter (Ø133) 1800 sheets tissue rolls and shall have door, door frame, and dispensing mechanism fabricated of alloy 18-8 stainless steel, type 304, 18 gauge; cabinet body shall be same grade, 22 gauge. All exposed surface shall be No 4 satin finish and be protected during shipment with a PVC film easily removable after installation. Internal mechanism levers shall be fabricated of molded high-impact resistant plastic for smooth operation. Structural assembly of body and door components shall be of welded construction. Door hinge shall be of heavy-duty stainless steel 3/16″ diameter (Ø4.8). Door shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Cabinet shall include theft resistant and vandal resistant rollers that shall be of molded high-impact resistant plastic with integral molded-in stainless steel end pins and two (2) rollers [p/n R-004] shall be supplied.

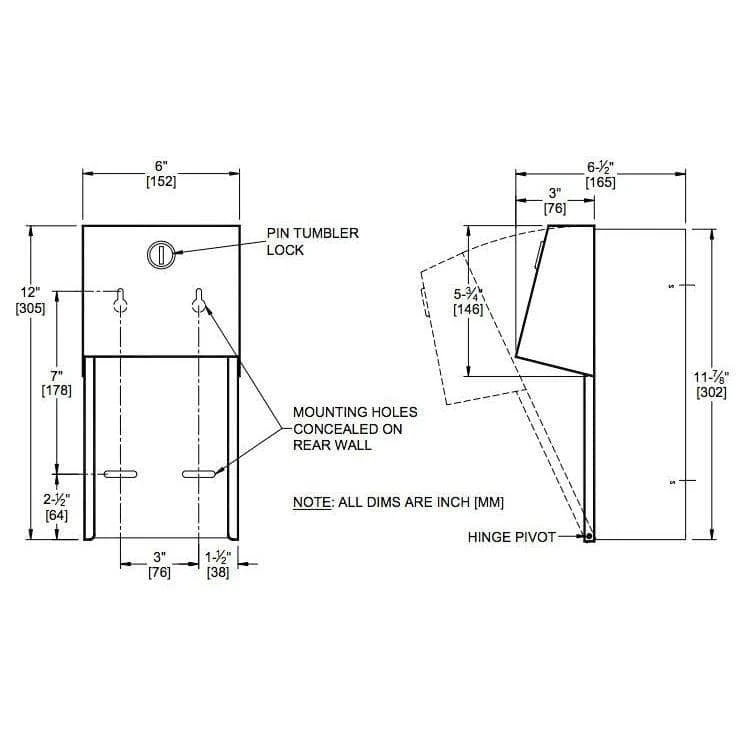

INSTALLATION Unit is surface mounted on wall or partition using four (4) No 10 self-tapping screws (by others). Top two mounting holes through back are “keyhole” slots for ease in hanging unit on pre-installed screws. Bottom two mounting holes are horizontal slots for ease of adjustment. For compliance with ADA Accessibility Guidelines, top of unit should be installed 29″ (737 mm) above finished floor.

OPERATION Reloading instructions are printed on graphic label inside door. Bottom roll is depleted prior to top roll automatically dropping into lower position for use. Empty rollers can not be removed without key unlocking door.
