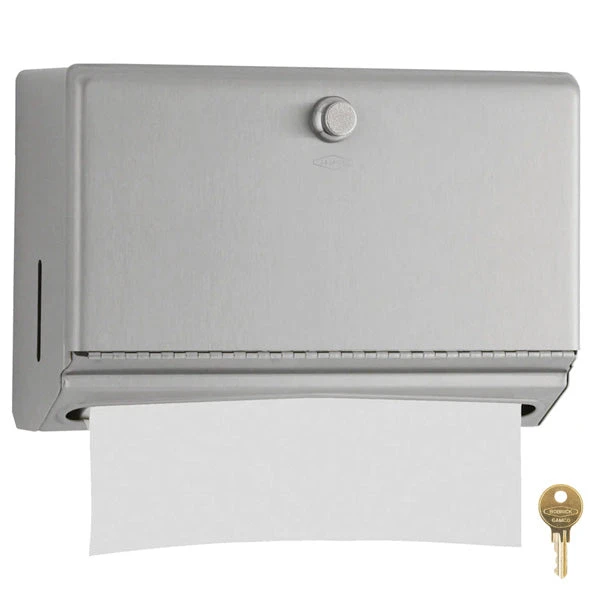

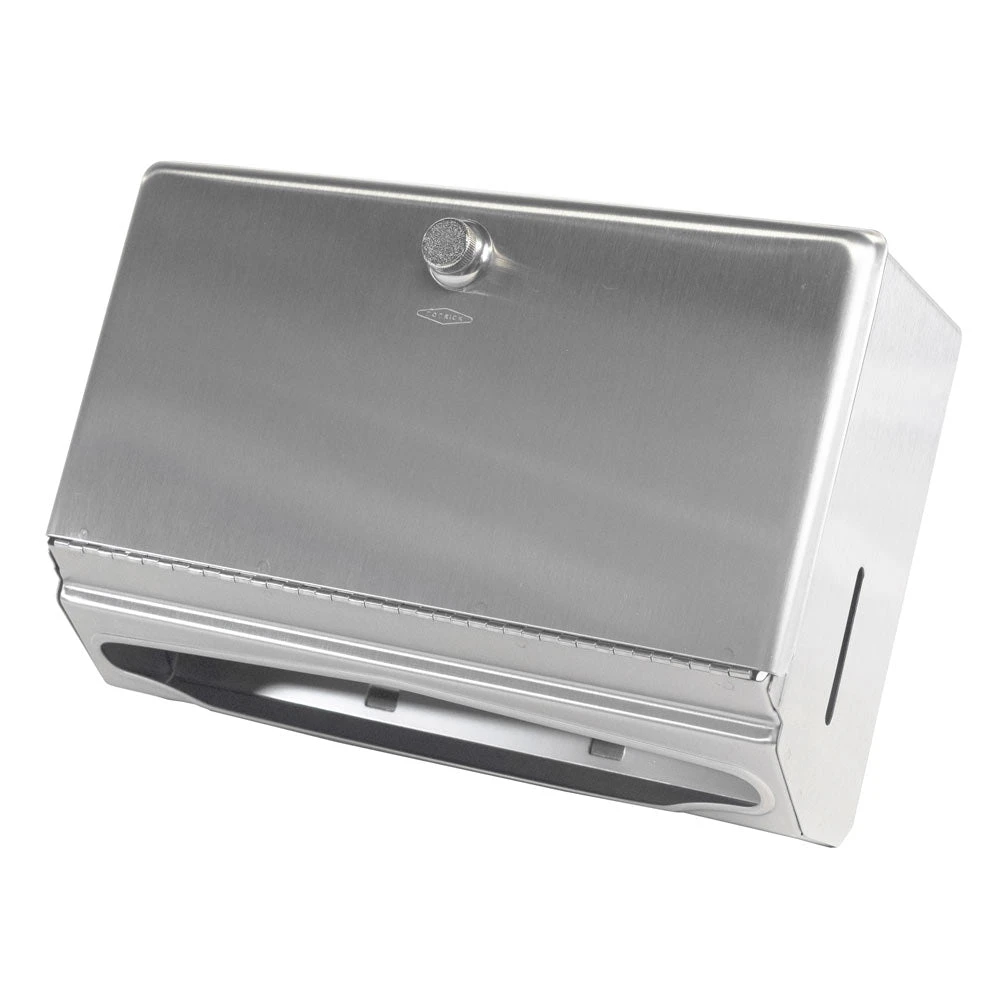

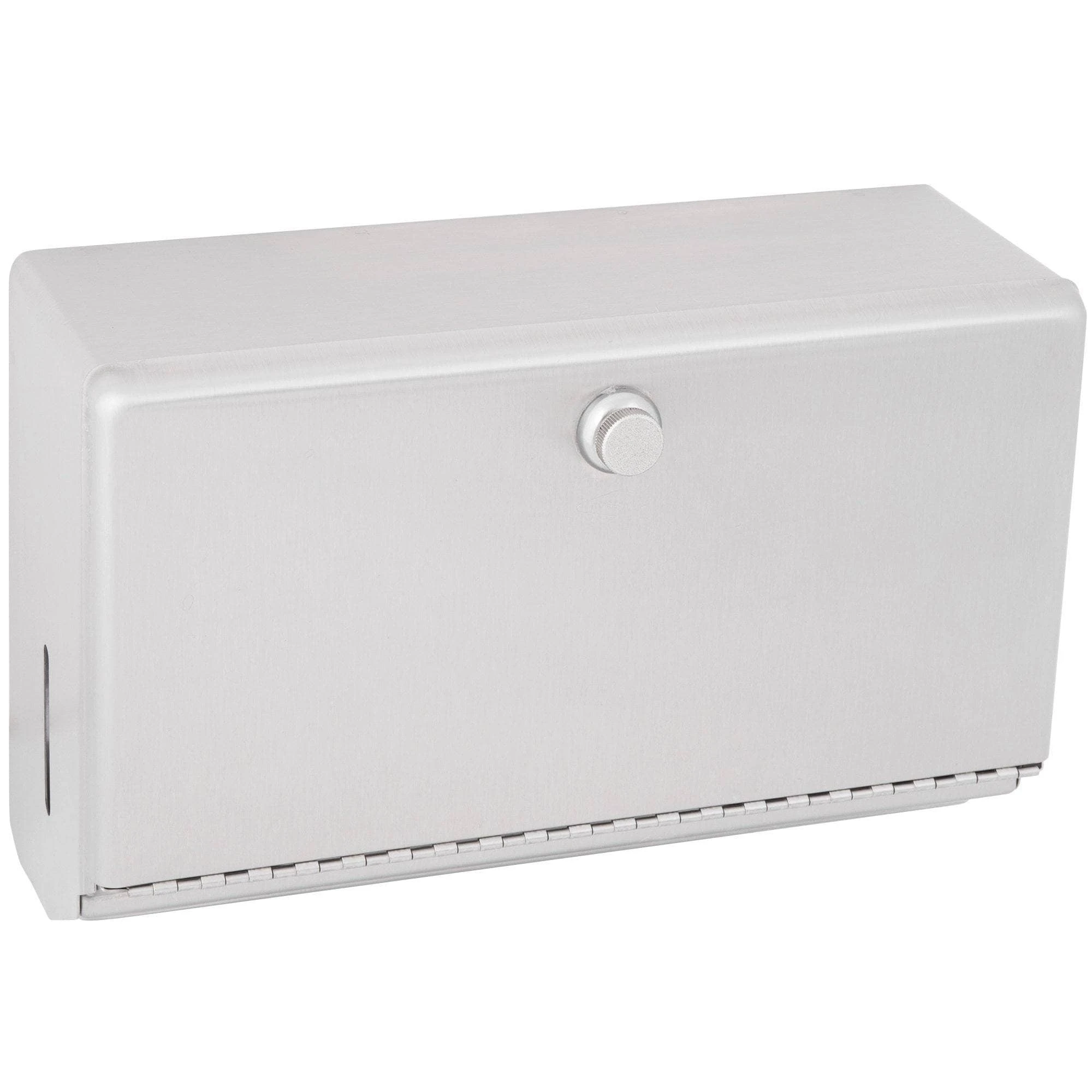

Bobrick B-2621 Commercial Paper Towel Dispenser, Surface-Mounted, Stainless Steel

• Bobrick Classic Series
• Satin-finish stainless steel
• Dispenses 200 C-fold or 275 multi-fold towels
• Door has knob-latch
• Hemmed towel tray opening

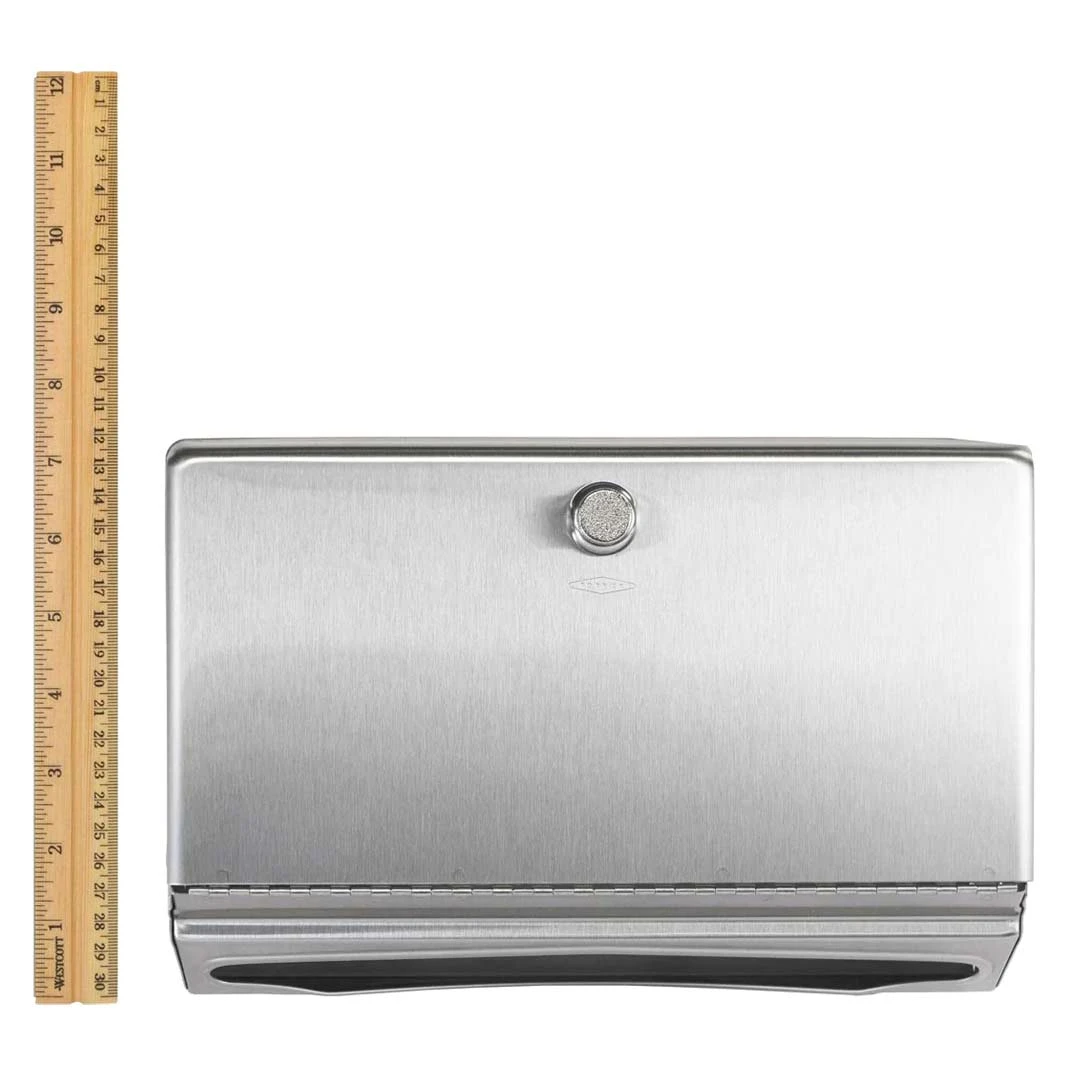

• Unit 10-3/4″ W, 7-1/8″ H, 4″ D (275 x 180 x 100mm)

Satin-finish stainless steel. Dispenses 200 C-fold or 275 multifold towels. Door has knob-latch. Hemmed towel tray opening. Unit 10 3/4″ W, 7 1/8″ H, 4″ D (275 x 180 x 100mm).

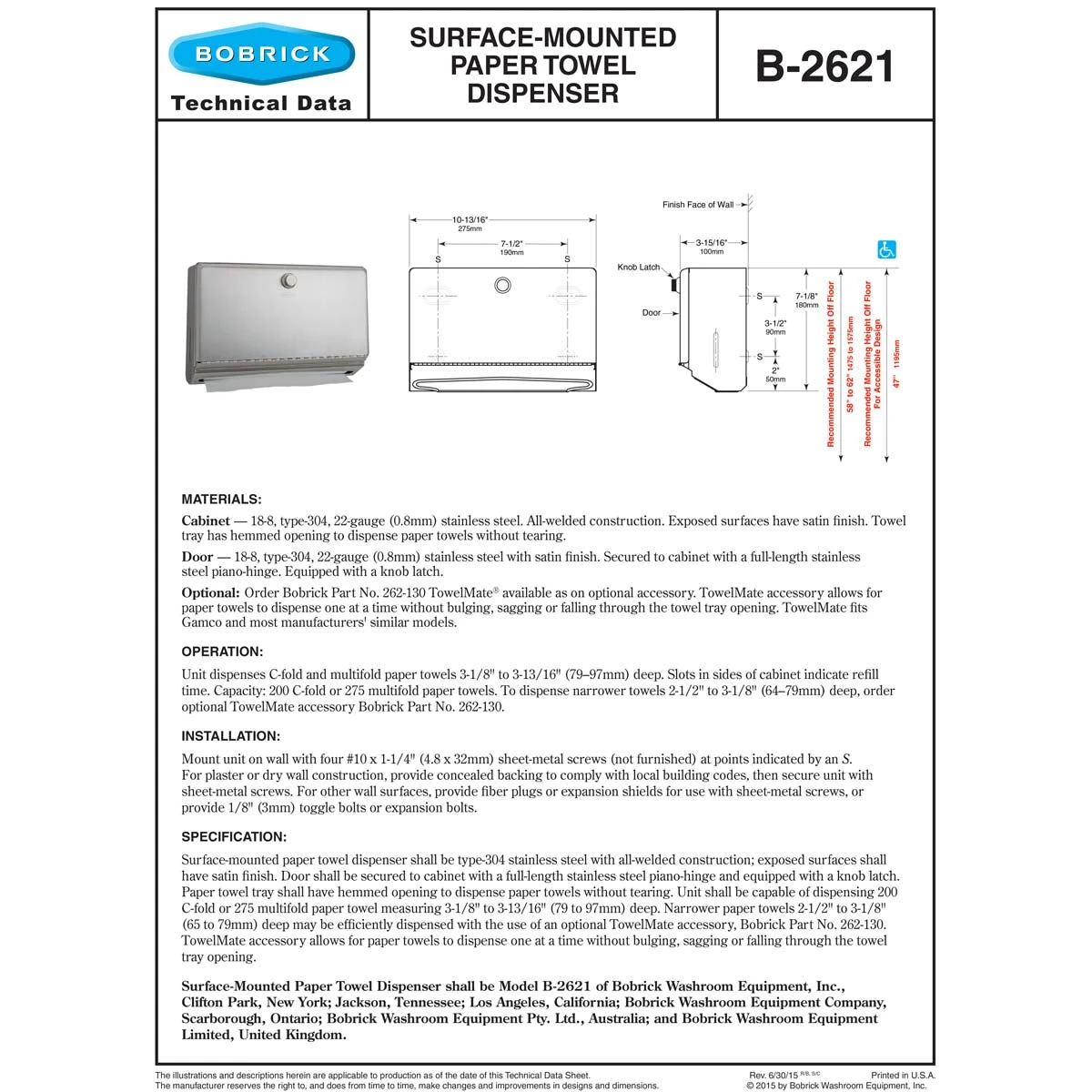

From Tech Data

MATERIALS:

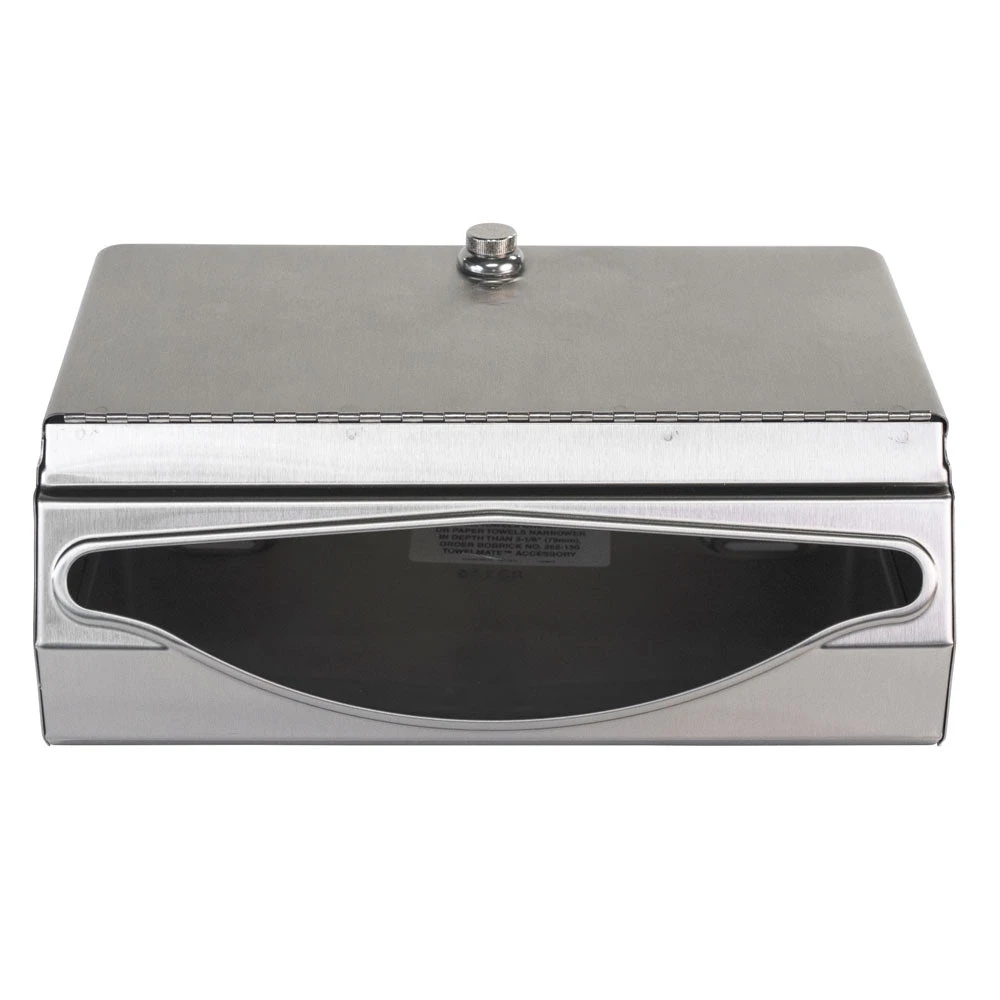

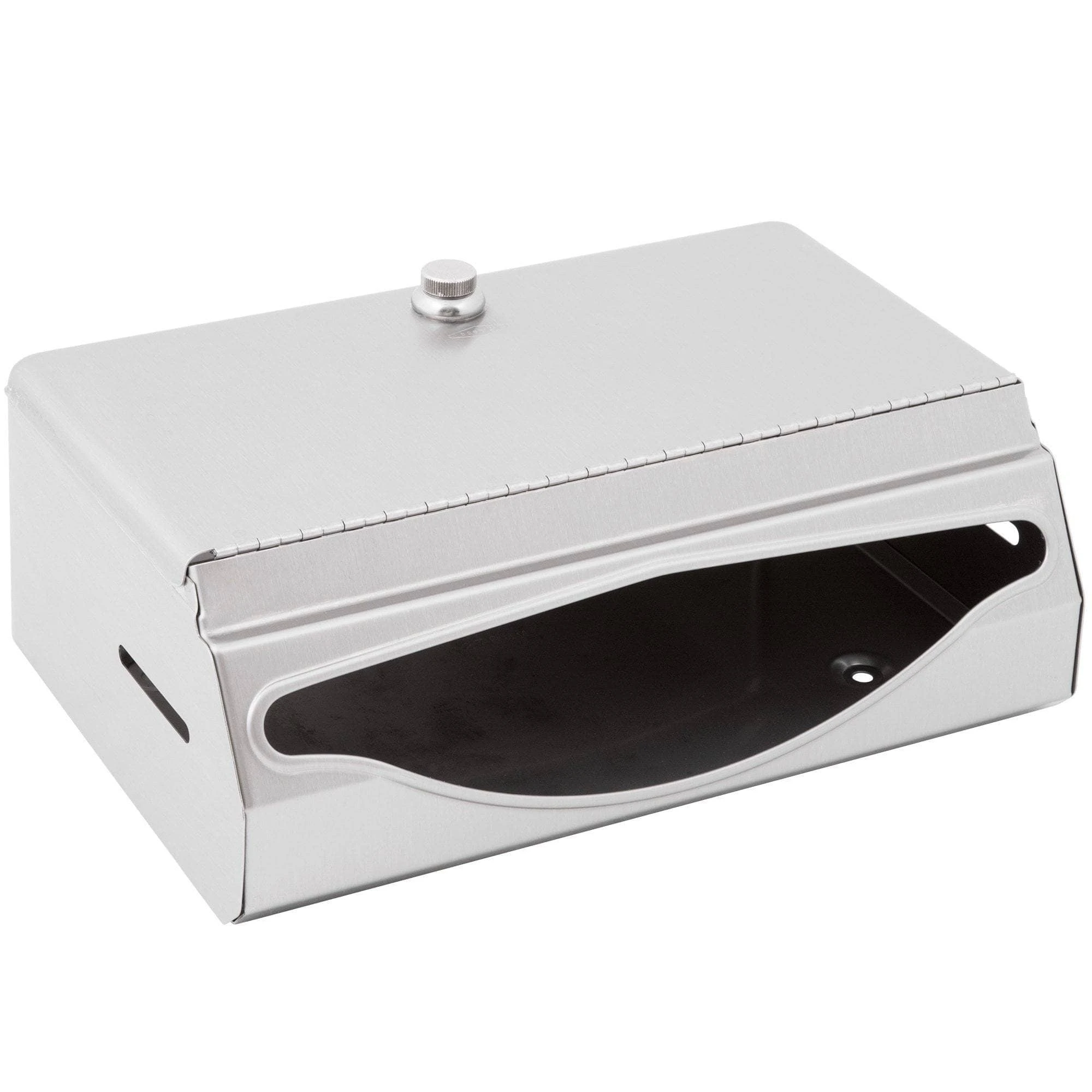

Cabinet — 18-8, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction. Exposed surfaces have satin finish. Towel tray has hemmed opening to dispense paper towels without tearing.

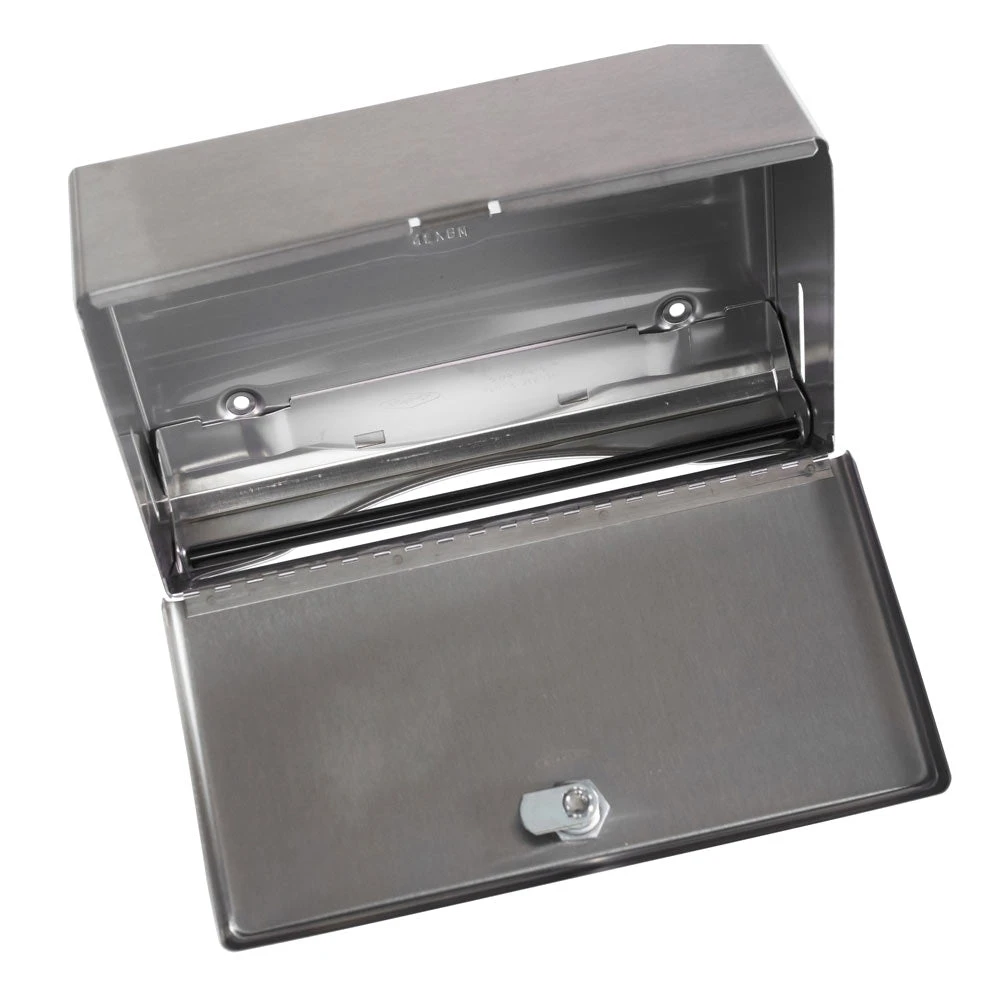

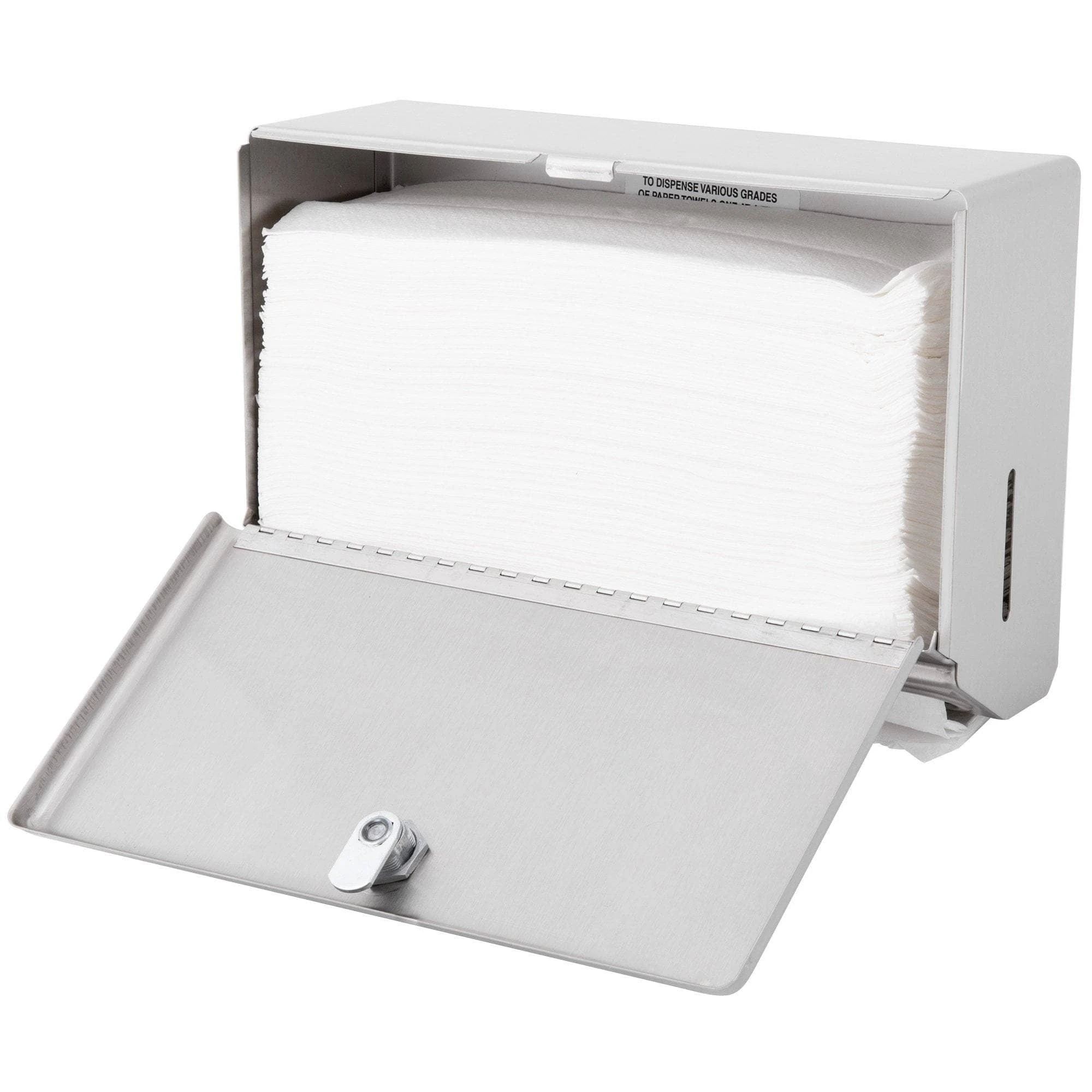

Door — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Secured to cabinet with a full-length stainless steel piano-hinge. Equipped with a knob latch.

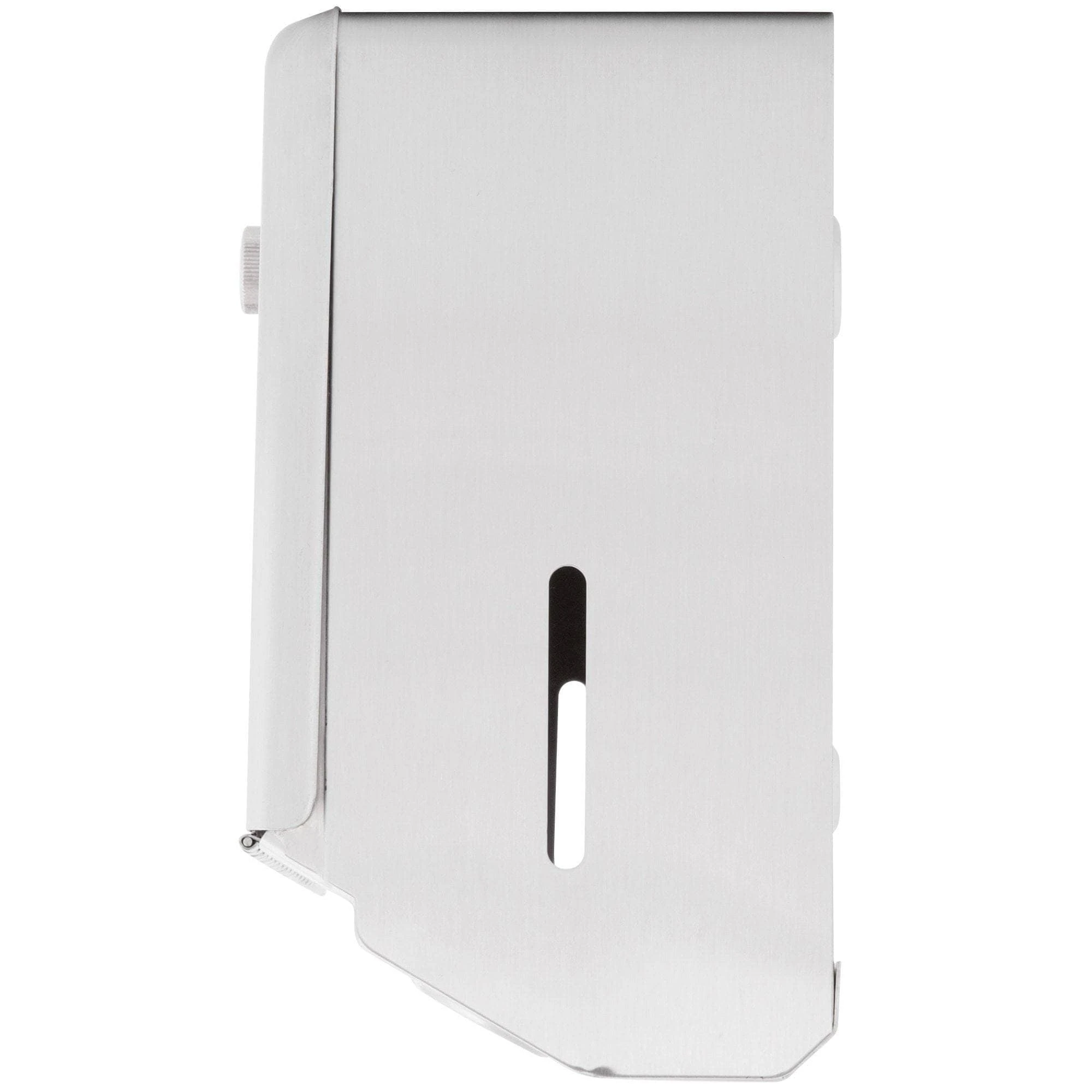

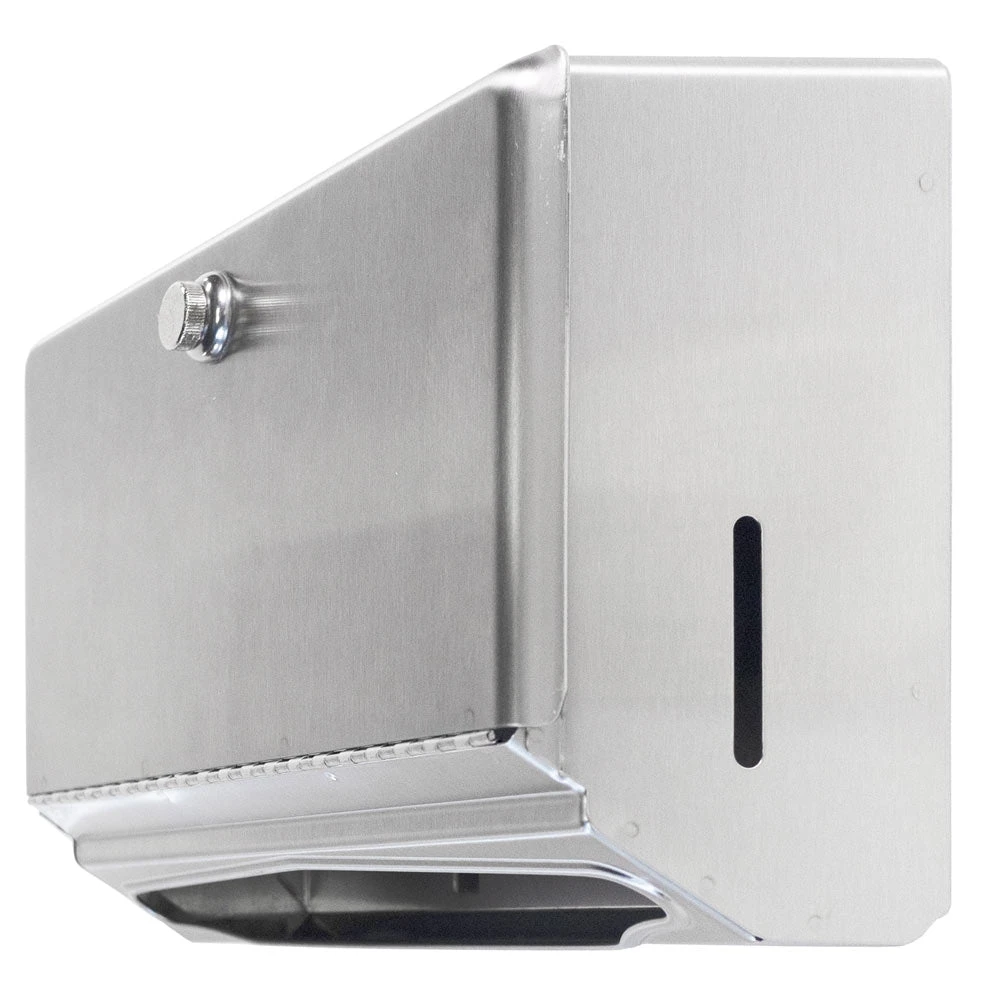

Optional: Order Bobrick Part No. 262-130 TowelMate® available as on optional accessory. TowelMate accessory allows for paper towels to dispense one at a time without bulging, sagging or falling through the towel tray opening. TowelMate fits Gamco and most manufacturers’ similar models. OPERATION: Unit dispenses C-fold and multifold paper towels 3-1/8″ to 3-13/16″ (79–97mm) deep. Slots in sides of cabinet indicate refill time. Capacity: 200 C-fold or 275 multifold paper towels. To dispense narrower towels 2-1/2″ to 3-1/8″ (64–79mm) deep, order optional TowelMate accessory Bobrick Part No. 262-130.

INSTALLATION:

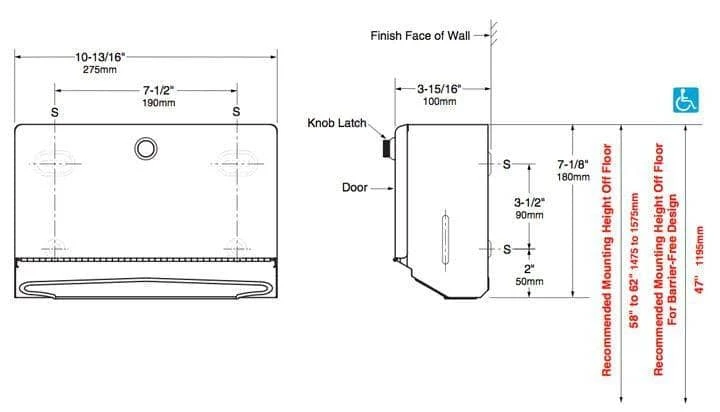

Mount unit on wall with four #10 x 1-1/4″ (4.8 x 32mm) sheet-metal screws (not furnished) at points indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 1/8″ (3mm) toggle bolts or expansion bolts.

SPECIFICATION:
Surface-mounted paper towel dispenser shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be secured to cabinet with a full-length stainless steel piano-hinge and equipped with a knob latch. Paper towel tray shall have hemmed opening to dispense paper towels without tearing. Unit shall be capable of dispensing 200 C-fold or 275 multifold paper towel measuring 3-1/8″ to 3-13/16″ (79 to 97mm) deep. Narrower paper towels 2-1/2″ to 3-1/8″ (65 to 79mm) deep may be efficiently dispensed with the use of an optional TowelMate accessory, Bobrick Part No. 262-130. TowelMate accessory allows for paper towels to dispense one at a time without bulging, sagging or falling through the towel tray opening.
