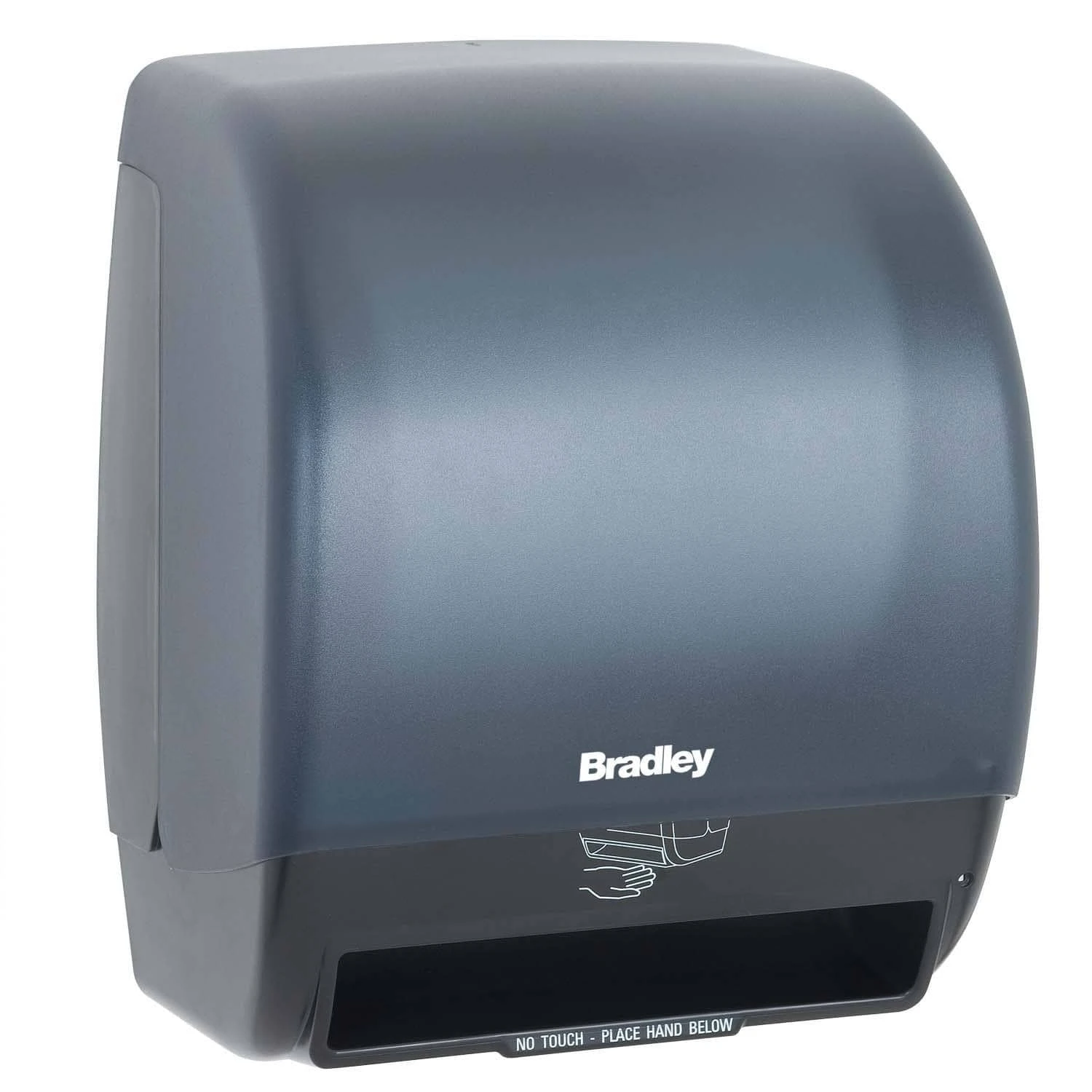

Bradley 2494 Commercial Paper Towel Dispenser, Surface-Mounted, Plastic

• Surface-mounted
• Motion sensor roll paper Towel dispenser
• Battery Operated (4 “D” Batteries)
• Key-activated spring lock
• Durable high-impact material
• Stub roll transfer system
• Adjustable sheet length and time delay

Bradley roll towel dispenser. The cover is constructed of durable, high impact plastic. Sensor operated. To operate, place hand in front of the dispenser. Dispenses non-perforated towels up to 8 inches in diameter and 8 inches wide with core sizes from 1.5 inches to 2 inches. The Bradley 2494 Commercial Paper Towel Dispenser allows for 3-inch stub roll. Operates with 4 D cell batteries. Surface mounted.

• Material: Plastic
• Finish: Satin

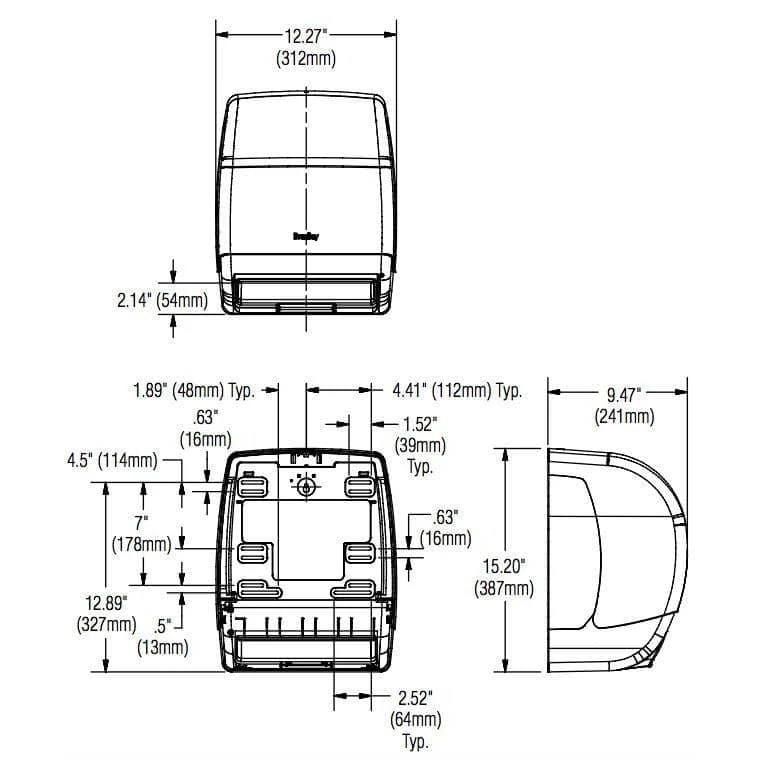

• Overall dimensions: 12.27″W x 15.2″H x 9.5″D.

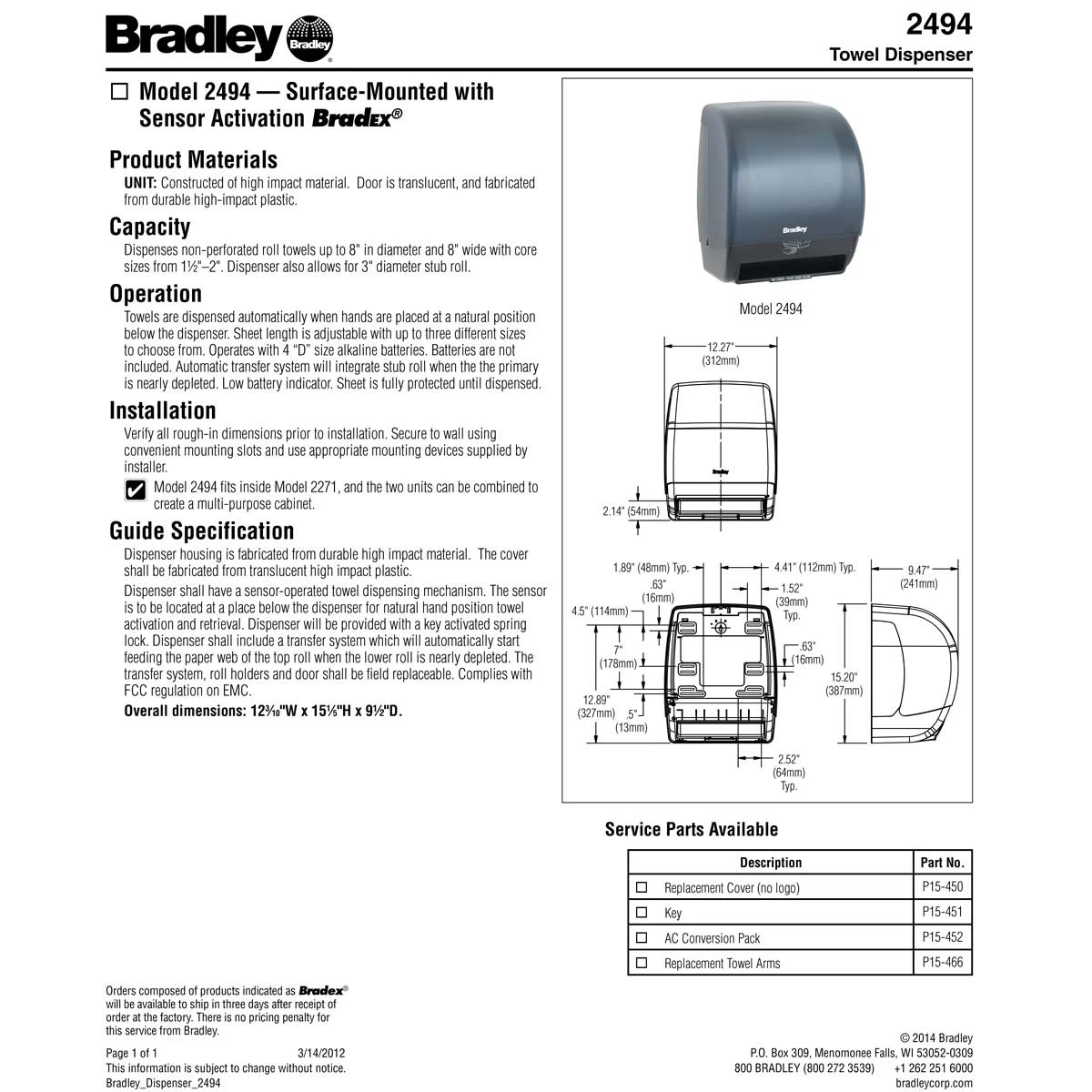

From Tech Data

Model 2494 — Surface-Mounted with Sensor Activation Bradex®

Product Materials
UNIT: Constructed of high impact material. Door is translucent, and fabricated from durable high-impact plastic.

Capacity
Dispenses non-perforated roll towels up to 8″ in diameter and 8″ wide with core sizes from 1½”–2″. Dispenser also allows for 3″ diameter stub roll.

Operation
Towels are dispensed automatically when hands are placed at a natural position below the dispenser. Sheet length is adjustable with up to three different sizes to choose from. Operates with 4 “D” size alkaline batteries. Batteries are not included. Automatic transfer system will integrate stub roll when the the primary is nearly depleted. Low battery indicator. Sheet is fully protected until dispensed.

Installation
Verify all rough-in dimensions prior to installation. Secure to wall using convenient mounting slots and use appropriate mounting devices supplied by installer. Model 2494 fits inside Model 2271, and the two units can be combined to create a multi-purpose cabinet.

Guide Specification
Dispenser housing is fabricated from durable high impact material. The cover shall be fabricated from translucent high impact plastic. Dispenser shall have a sensor-operated towel dispensing mechanism. The sensor is to be located at a place below the dispenser for natural hand position towel activation and retrieval. Dispenser will be provided with a key activated spring lock. Dispenser shall include a transfer system which will automatically start feeding the paper web of the top roll when the lower roll is nearly depleted. The transfer system, roll holders and door shall be field replaceable. Complies with FCC regulation on EMC.
